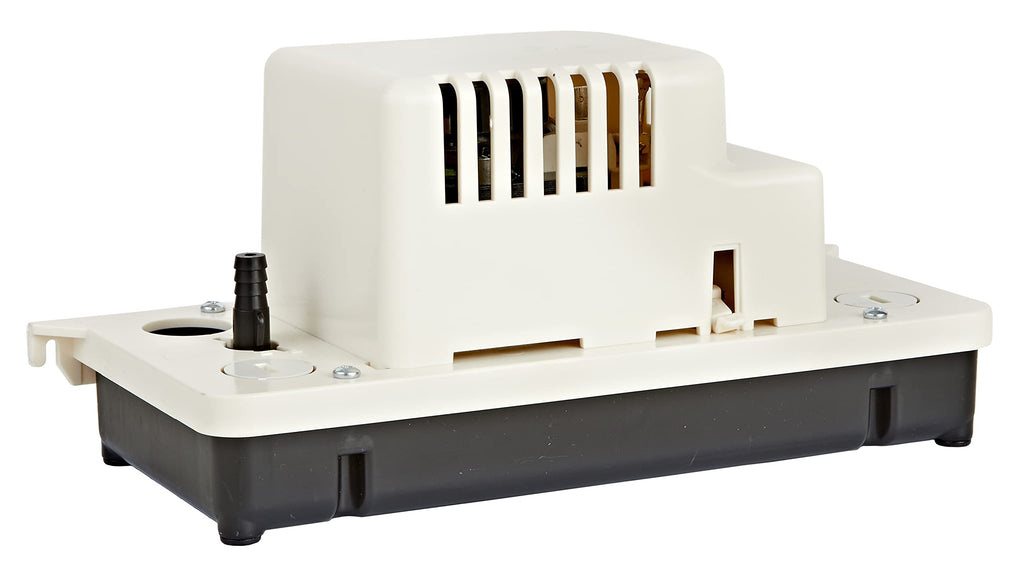

Little Giant VCCA-20ULS 115V, 80 GPH Low Profile Condensate Pump

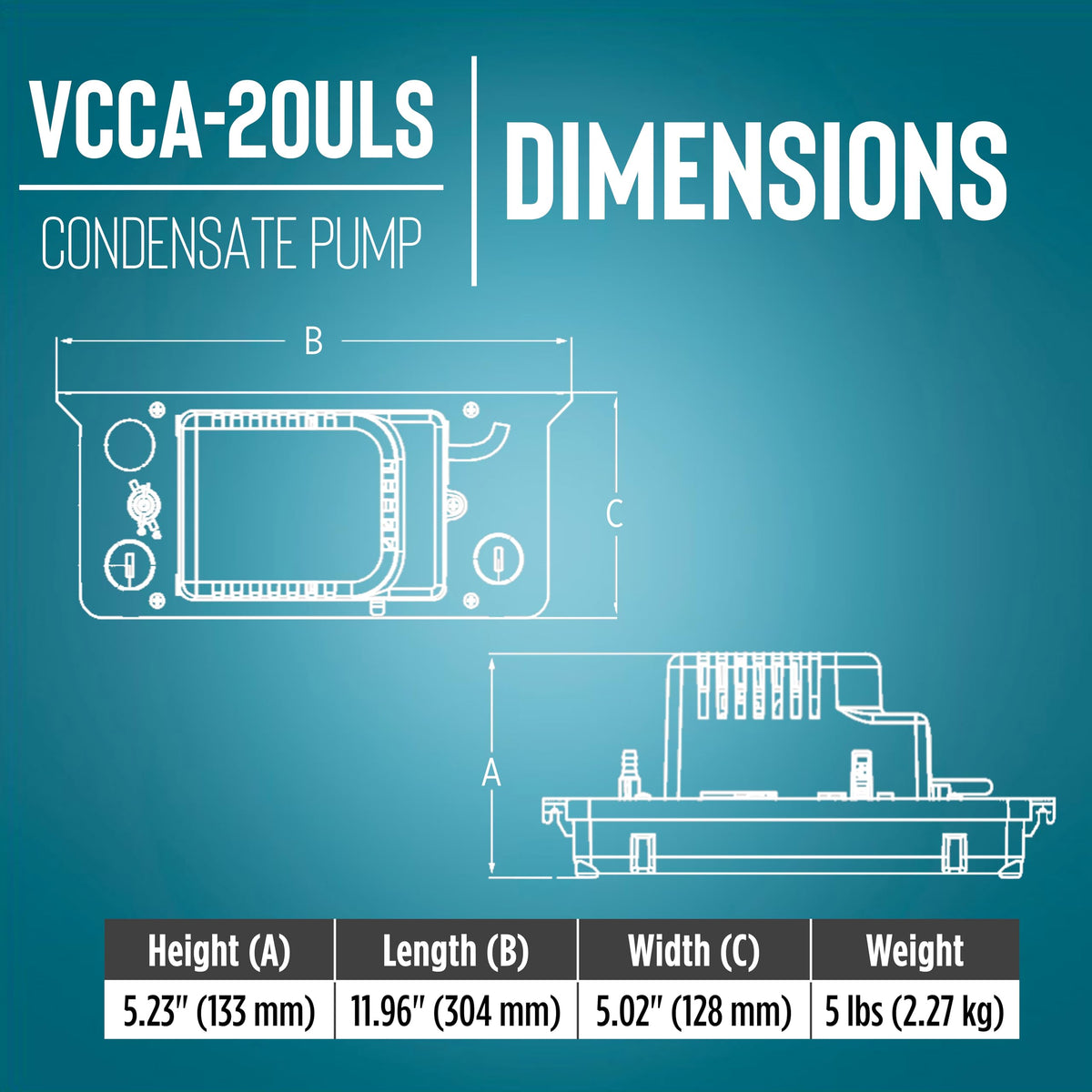

• LOW-PROFILE CONDENSATE REMOVAL PUMP: the low tank height allows the pump to be used where other condensate pumps will not fit; unit dimensions are 11.96 in. wide x 5.02 in. deep x 5.23 in. high
• AUTOMATIC CONDENSATE REMOVAL: designed for the collection and removal of condensate from air conditioners, refrigerators and dehumidifiers
• Suitable for high efficiency condensing furnaces and boiler equipment

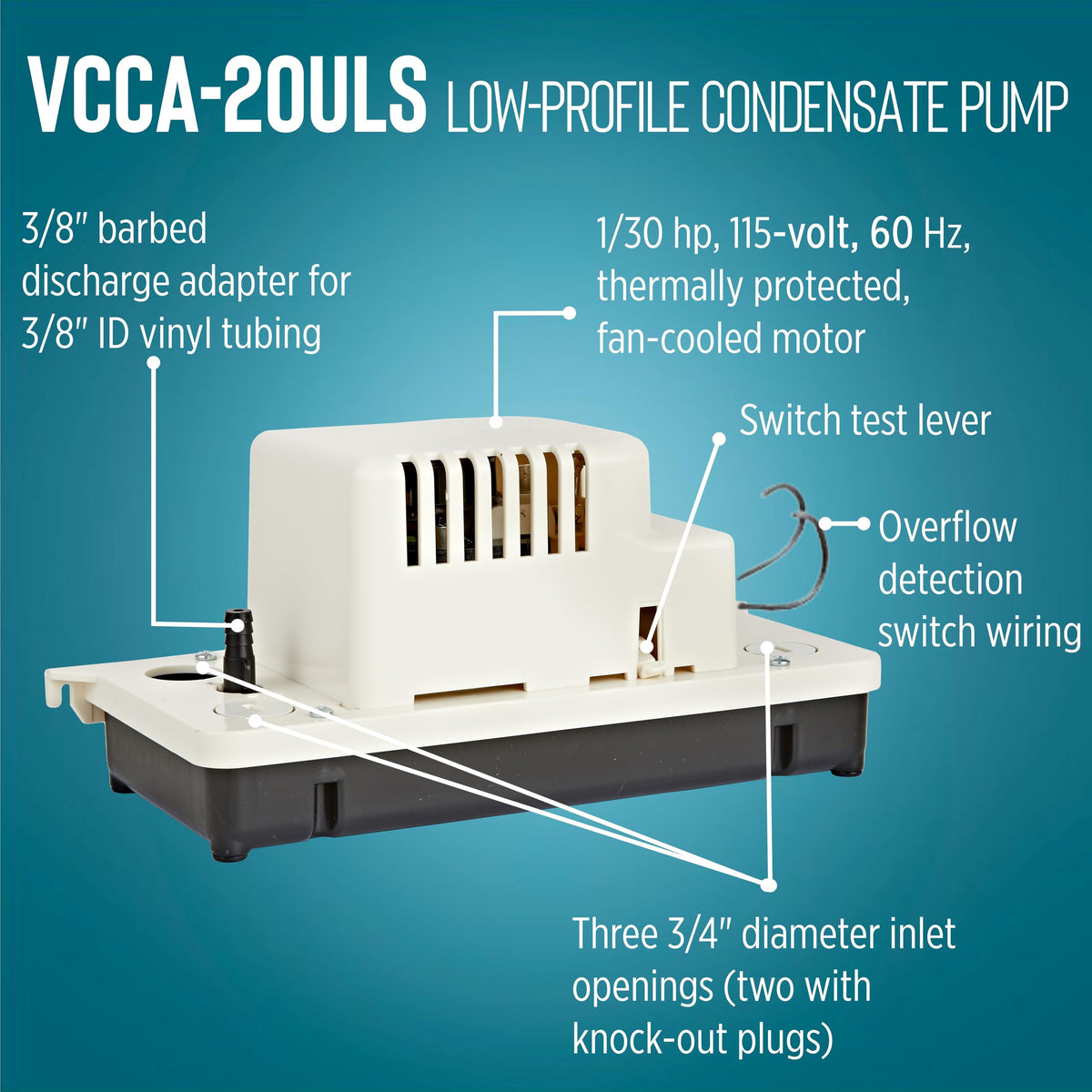

• CHECK VALVE INCLUDED: includes 1/4-turn, twist-off locking check valve discharge adapter for 3/8-in. ID tubing and an additional adapter for 1/4-in. ID vinyl tubing

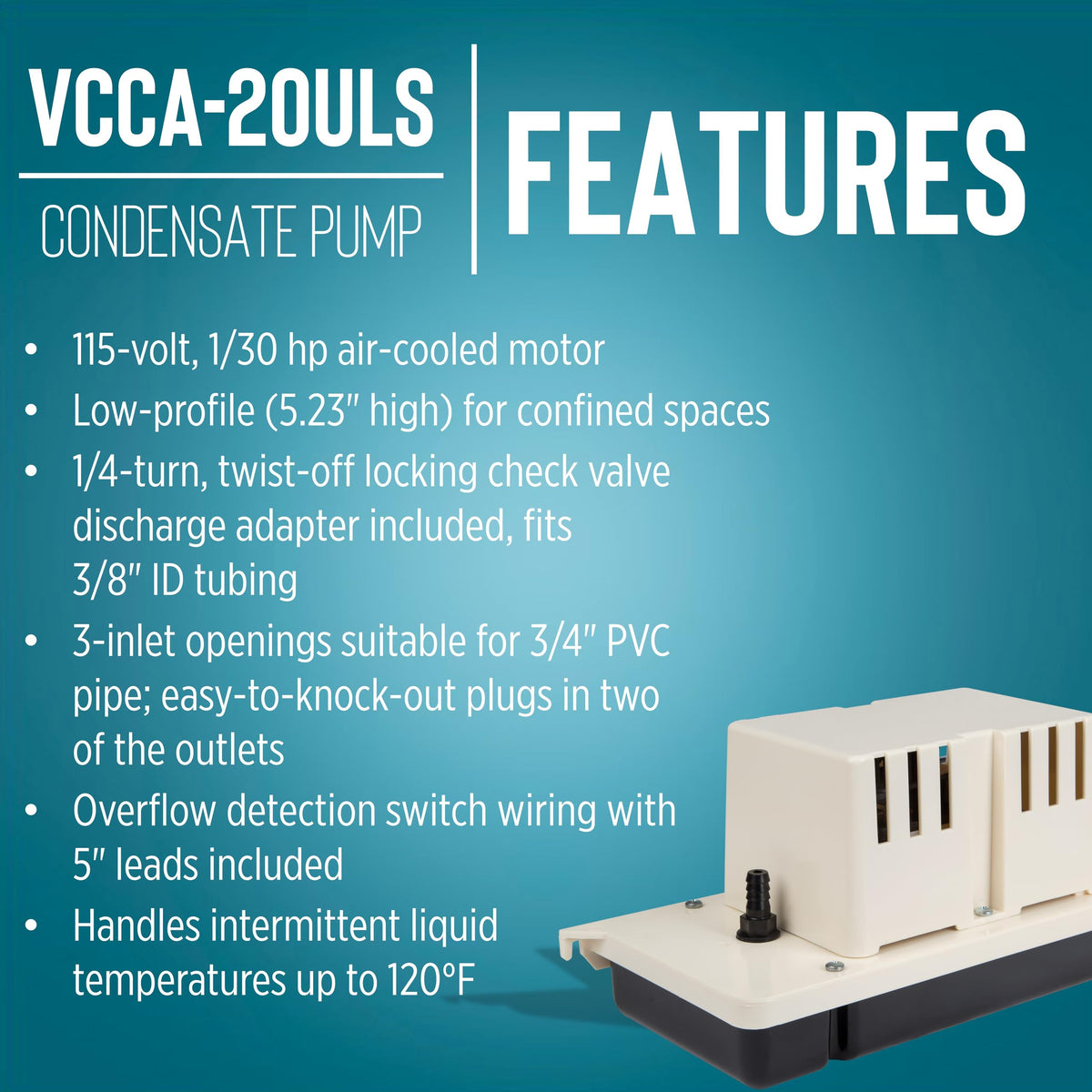

• SPECIFICATIONS: 1/30 HP, 80 GPH at 1-ft. head, 20-ft. shutoff; Max PSI = 8.6, 6-ft. cord, 1.5 Amps, 93 Watts, cCSAus listed; thermal overload protected; overflow detection switch with 5-inch leads

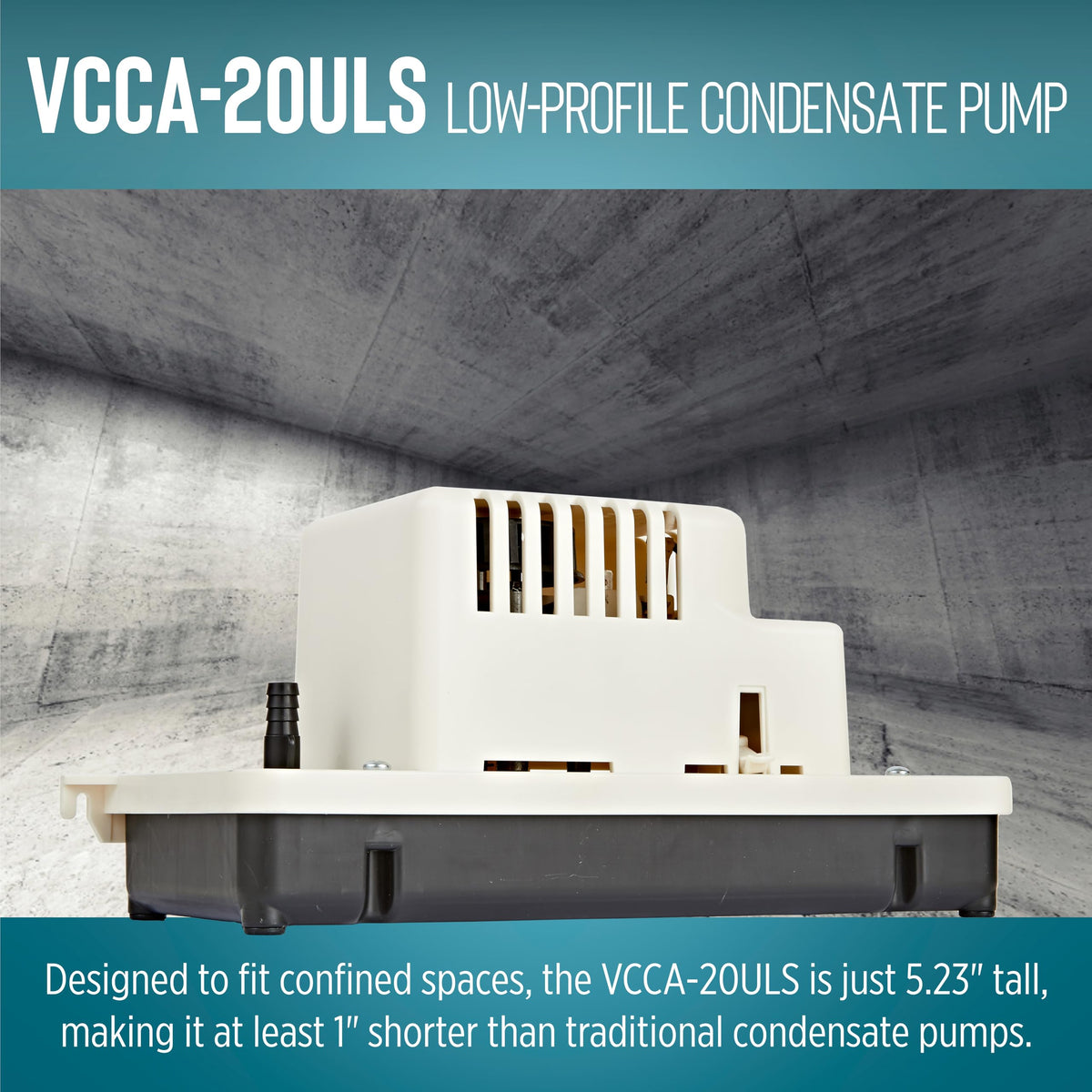

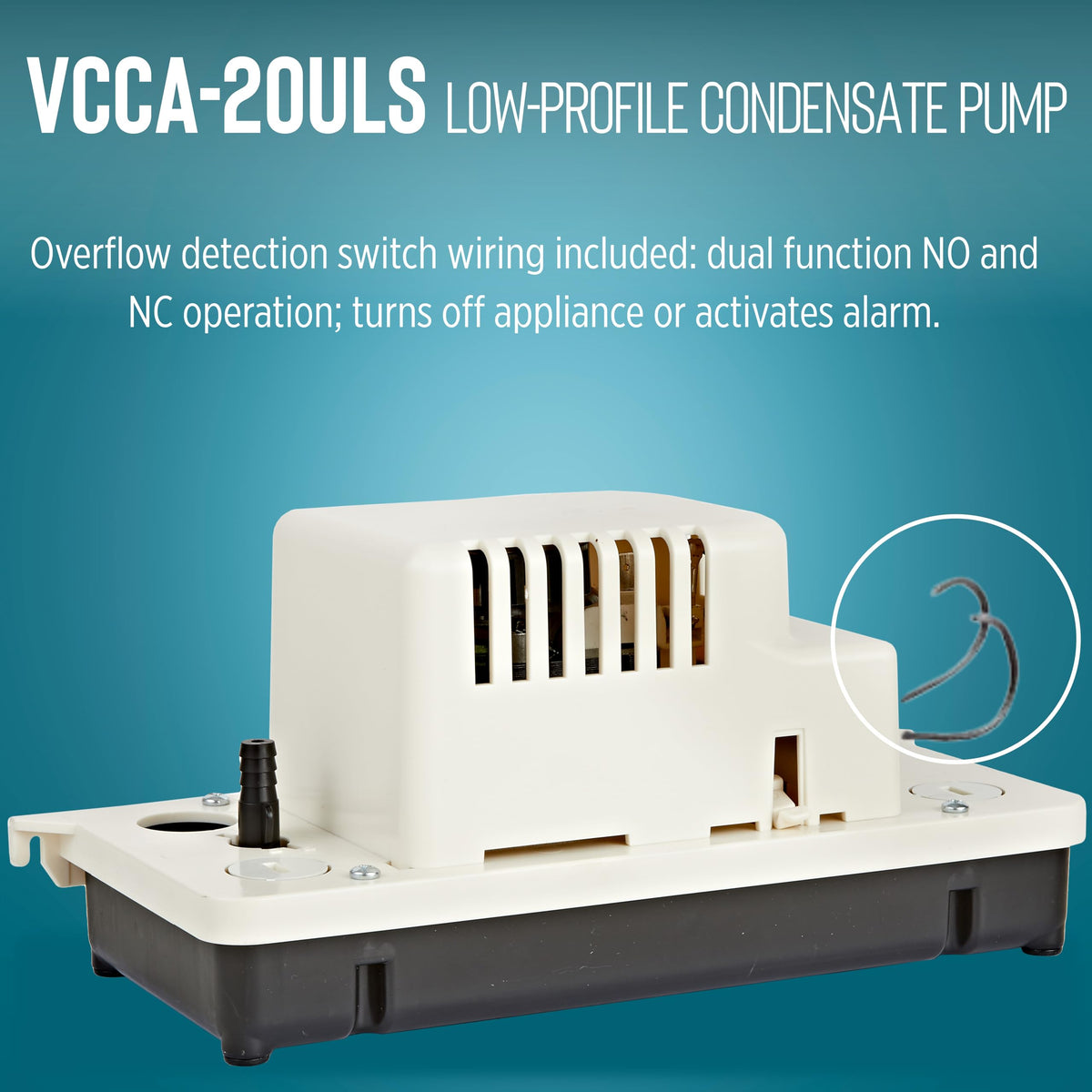

The Little Giant VCCA-20ULS 115-volt, low-profile condensate pump is suited for tight spaces. The dimensions are 11.96" long x 5.2" wide x 5.23" high. It is designed to removed condensate from air conditioners, refrigerators, dehumidifiers, boilers and furnaces. This pump comes with a safety switch which can be wired to shut down the system if an overflow situation is detected or it can be wired to activate an audible or visual alarm (not included.). This pump comes with a 6' cord and 3-prong plug. This pump is UL listed in Canadian and the USA.The VCCA-20ULS delivers up to 80 gph with a 17' shut-off and maximum of 7.4 PSI. It can handle intermittent liquid temperatures up to 120 °F. The VCCA-20ULS has 3-inlet openings suitable for 3/4" PVC pipe. Rubber feet on the bottom of the tank reduces noise when place on a hard surface. This pump comes with a switch test lever. It is equipped with a 1/4-turn, twist-off locking check valve discharge adapter for 3/8" ID tubing and an additional check valve adapter is included for 1/4" ID vinyl tubing.

Specifications

• Color: White/Black
• Material: Acrylonitrile Butadiene Styrene (ABS)
• Style: Low-Profile, 115-Volt, 6' Cord
• Product Dimensions: 5"L x 12"W x 5"H
• Power Source: Corded Electric
• Item Weight: 5 pounds
• Maximum Flow Rate: 1 gpm
• Maximum Lifting Height: 20 feet
• Voltage: 115 volts
• Number of Items: 1
• Unit Count: 1 Count
• Specific Uses For Product: Amateur, Inside, Professional
