Door Hinge Jig, Door Hinge Template Kit for Router, Door Lock, Latch Kit

• The Complete Door Hardware Solution: Door Hinges (Not for jamb), Bore Locks & Mount Latches. Easily cut precise hinge mortises, drill perfect lock holes, and achieve accurate latch alignment every time. Save effort and enjoy professional-grade installations with perfect alignment.

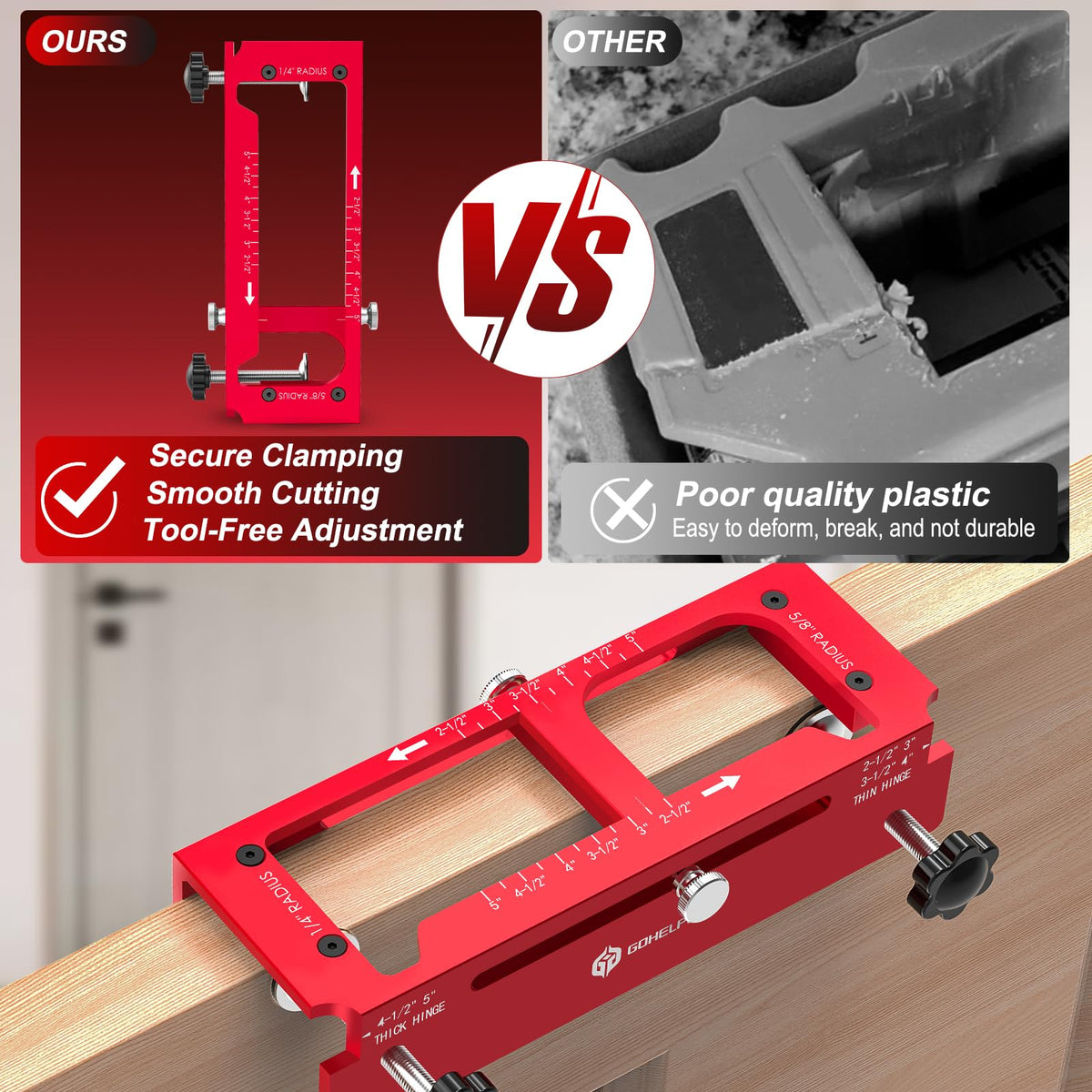

• Pro-Grade Aluminum Door Hinge Jig: Constructed from durable 6061 aluminum alloy, this jig offers 300% greater resistance to bending and warping than common plastic models. Built for long-lasting accuracy and professional results in every project. Note: Designed for use on the door leaf only, not on the door jamb.

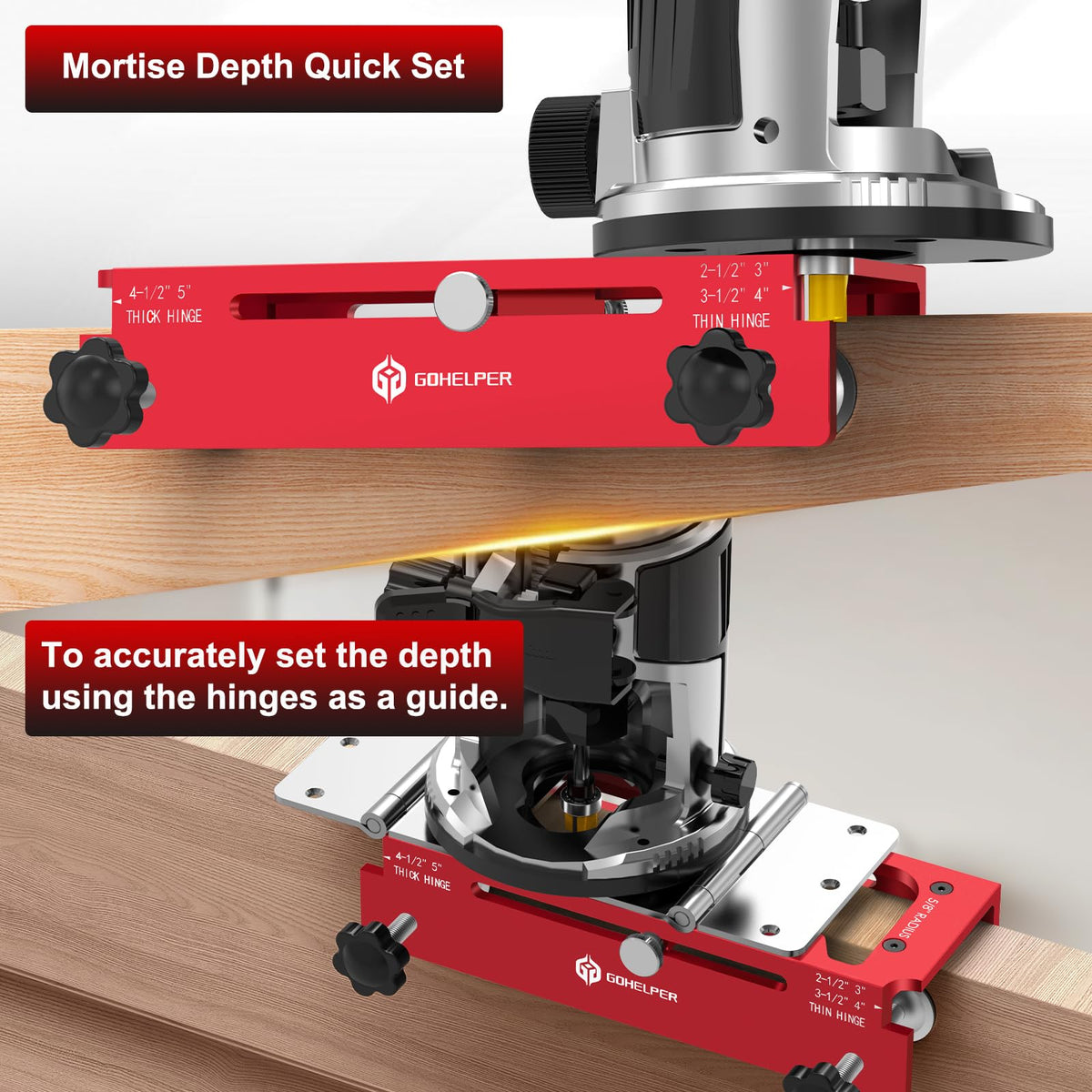

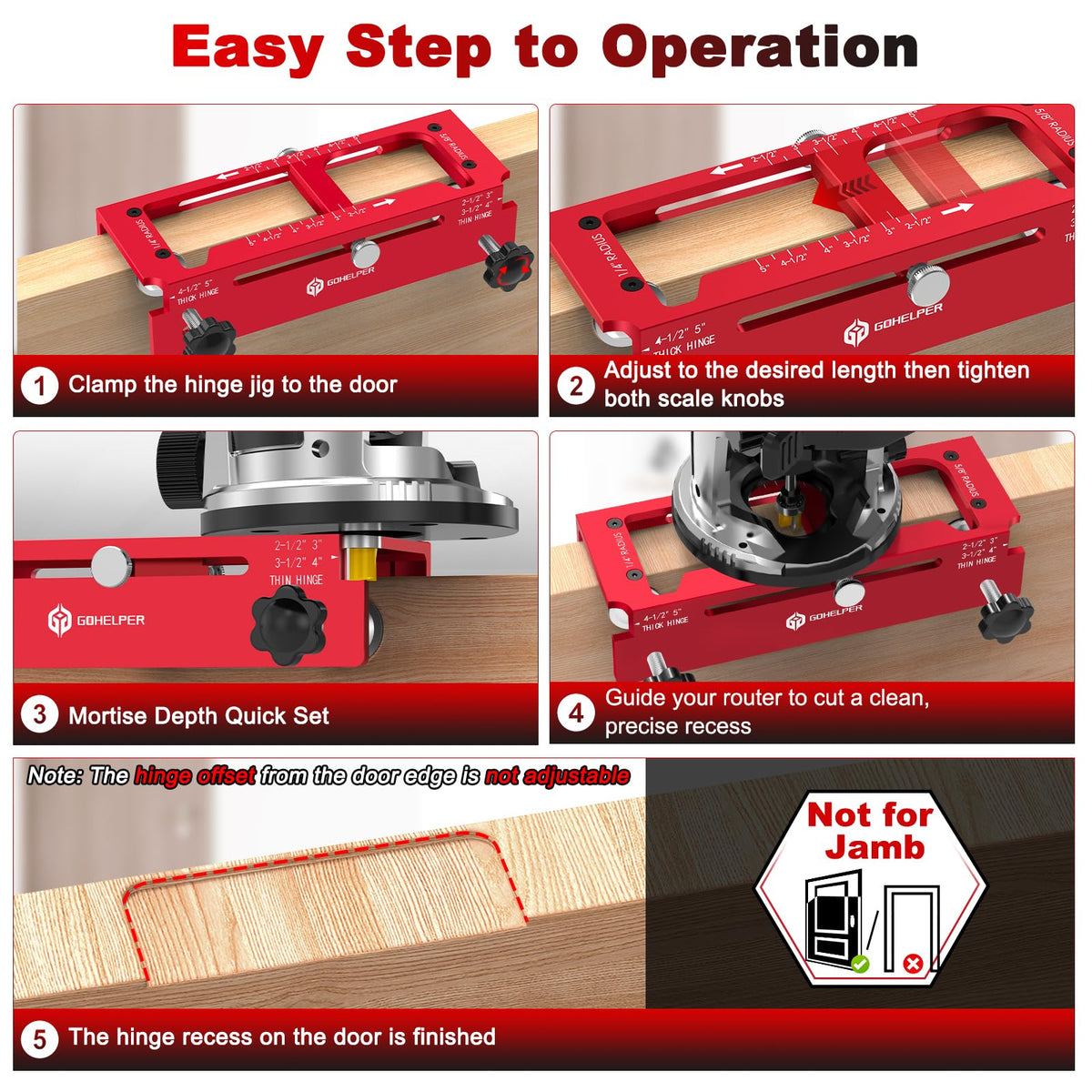

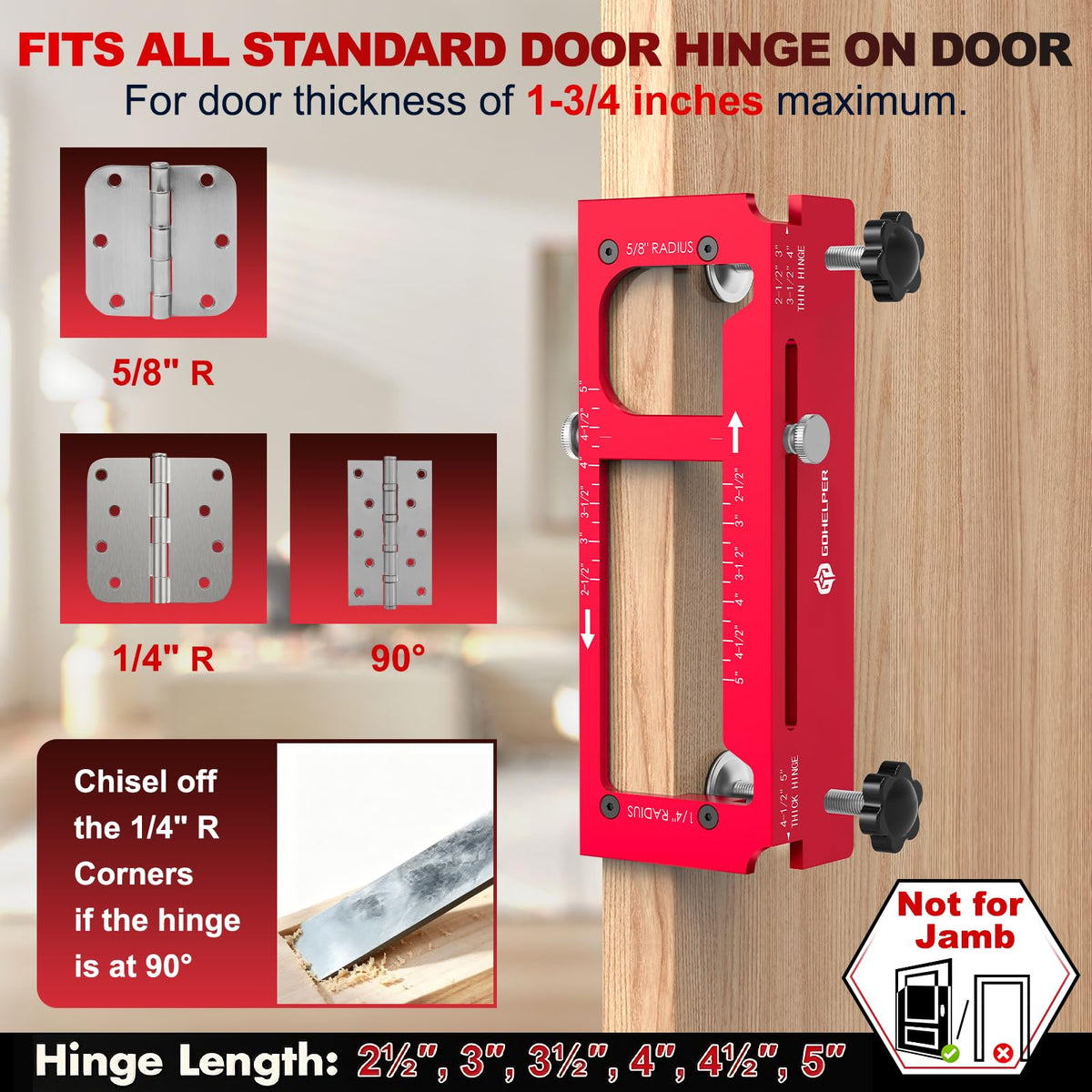

• Wide Compatibility & Easy Operation: The hinge jig fits most interior doors up to 1‑3/4″ thick. It accurately cuts mortises from 2‑1/2″ to 5″ for 1/4" or 5/8" radius round‑corner hinges. For square‑corner hinges, only minimal chiseling is required to finish the edges. The built‑in depth stop guarantees consistent depth, while self‑centering bits and non‑slip pads ensure a quick, stable, and scratch-free installation.

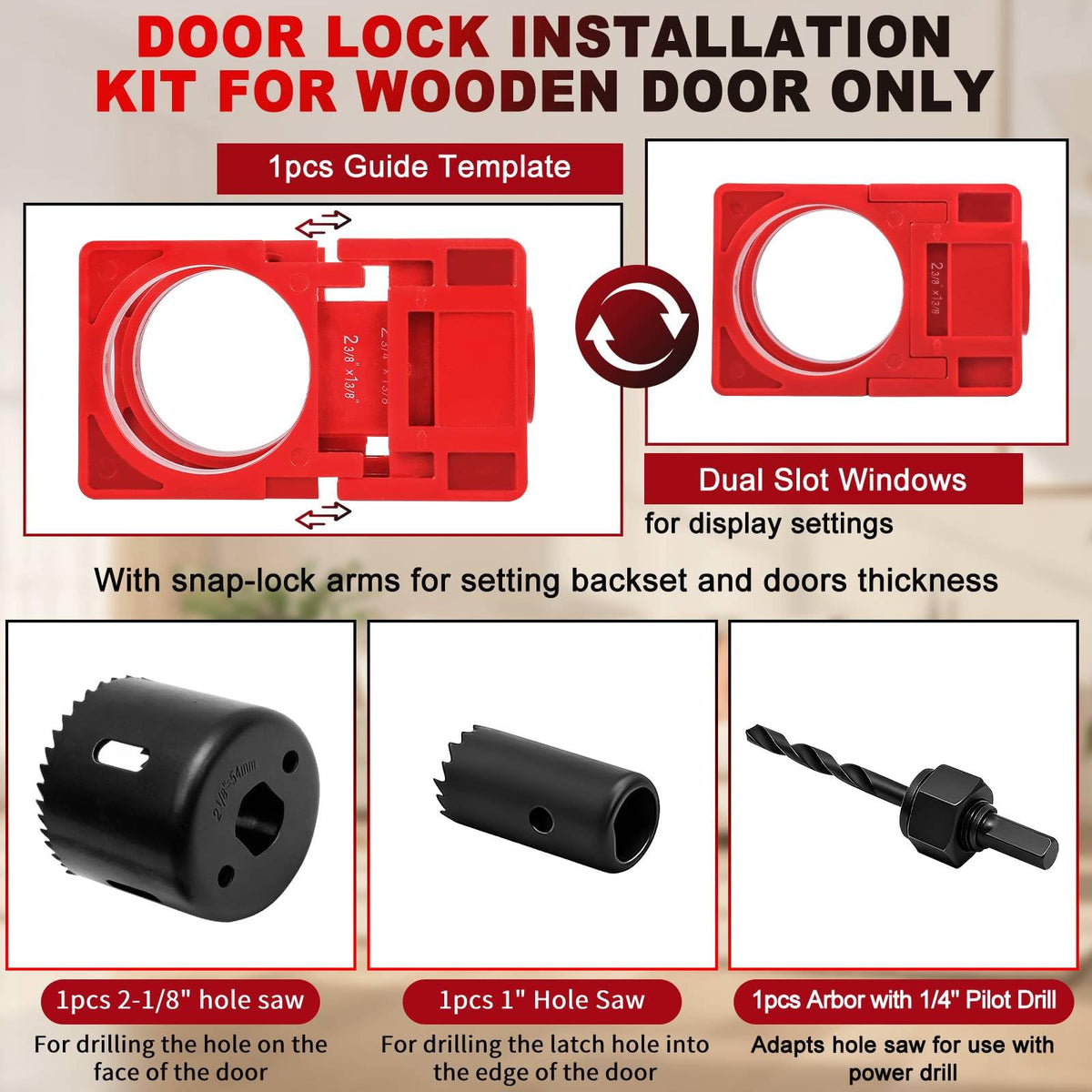

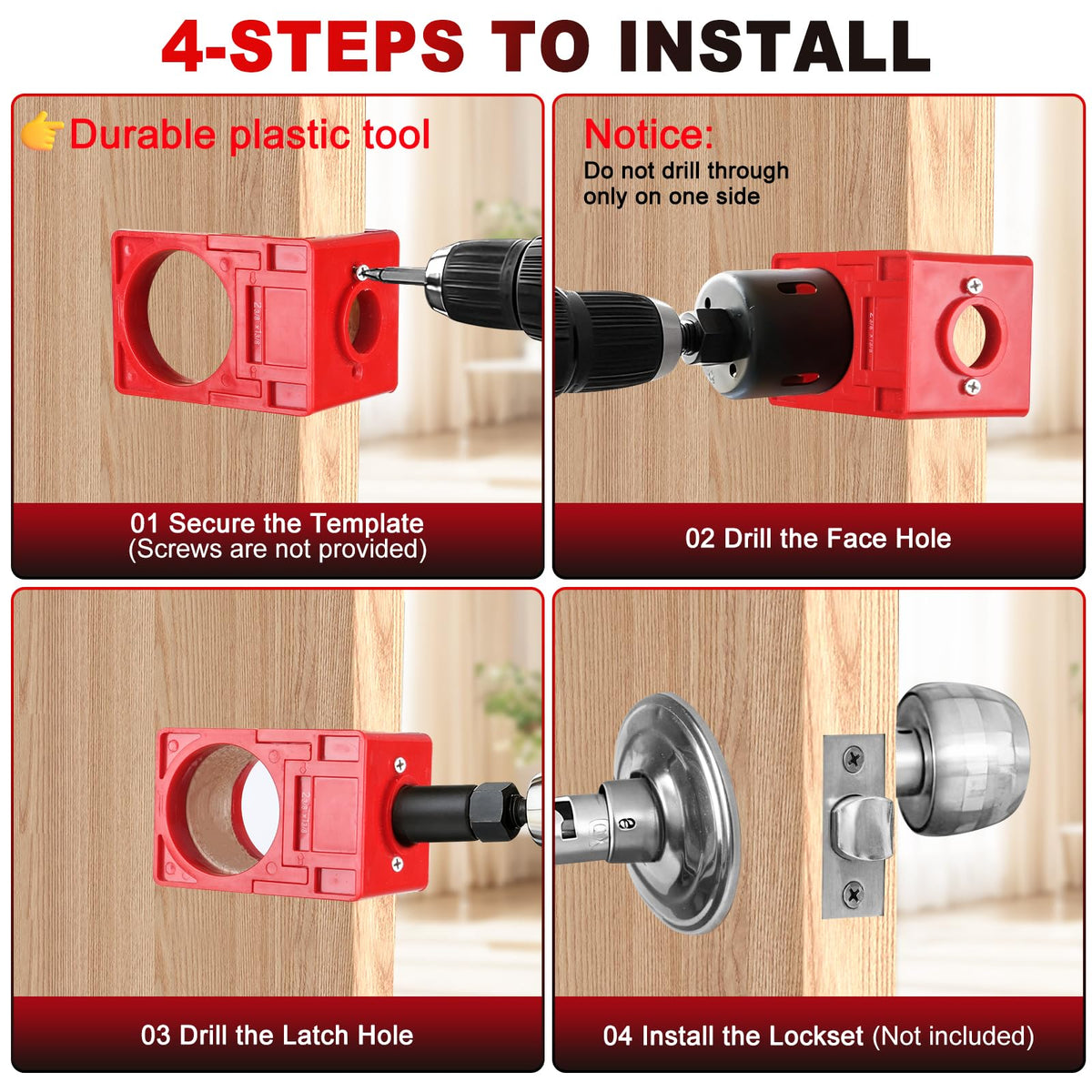

• Lightweight & Adjustable Lock Installation Kit: This practical kit features a lightweight yet durable plastic template that is fully adjustable. It reliably accommodates the most common standards for wooden doors: 1‑3/8″ or 1‑3/4″ thickness, and 2‑3/8″ or 2‑3/4″ backsets, ensuring a quick and accurate setup every time.

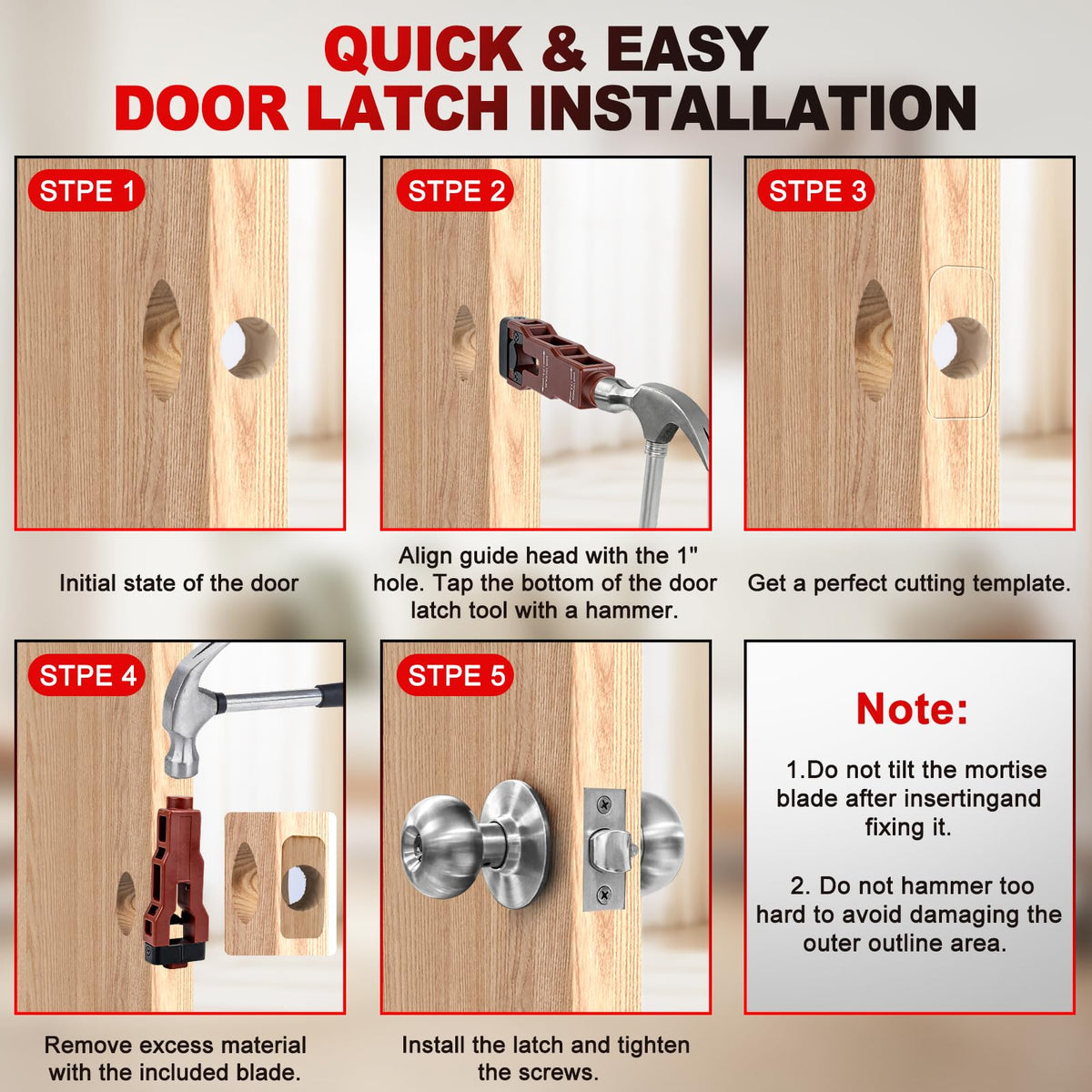

• Latch Mortising Tool: This handy mortising tool is portable and drastically reduces the need for other tools. It saves significant time while creating perfectly clean and accurate cutouts. Designed for standard doors with a thickness of 1-3/4" or 1-3/8".

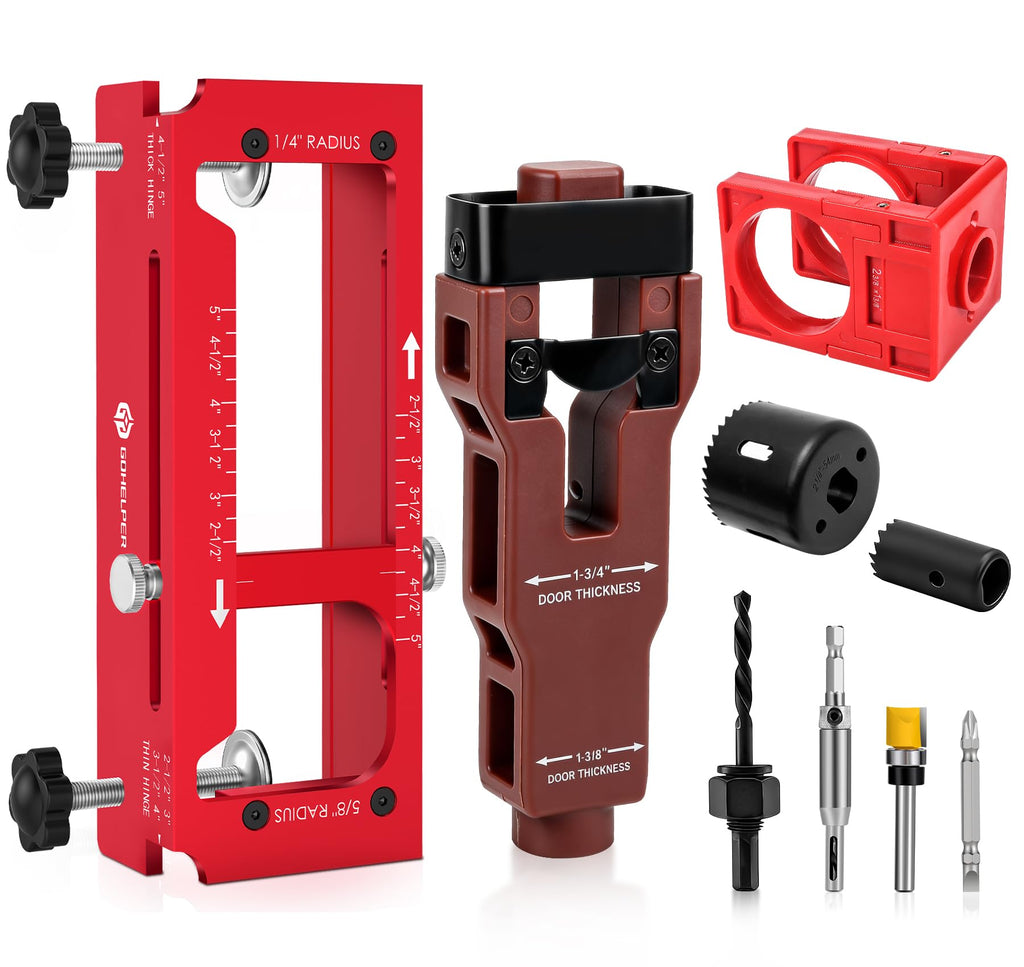

• Complete All-in-One Kit Contents: 1 Hinge Mortising Jig, 1 Router Bit, 1 Self-Centering Hinge Bit, 1 Double-Ended Screwdriver Bit, 1 Lock Installation Template, 2 Hole Saw Kits, 1 Arbor with Pilot Drill, 1 Door Latch Installation Kit, and 3 User Manuals. Everything you need for a full door hardware installation.

Specifications

• Material: Aluminum
• Product Dimensions: 12.59"L x 4.7"W
• Finish Type: Anodized surface
• Mounting Type: Door Mount
• Unit Count: 1 Count
• Number of Packs: 1
• Color: Red
• Number of Items: 3
• Finish Types: Anodized surface
• Item Dimensions L x W: 12.59"L x 4.7"W
• Material Type: Aluminum
• Included Components: Door Hinge Jig+Door Lock+Door Latch Installation Kit
