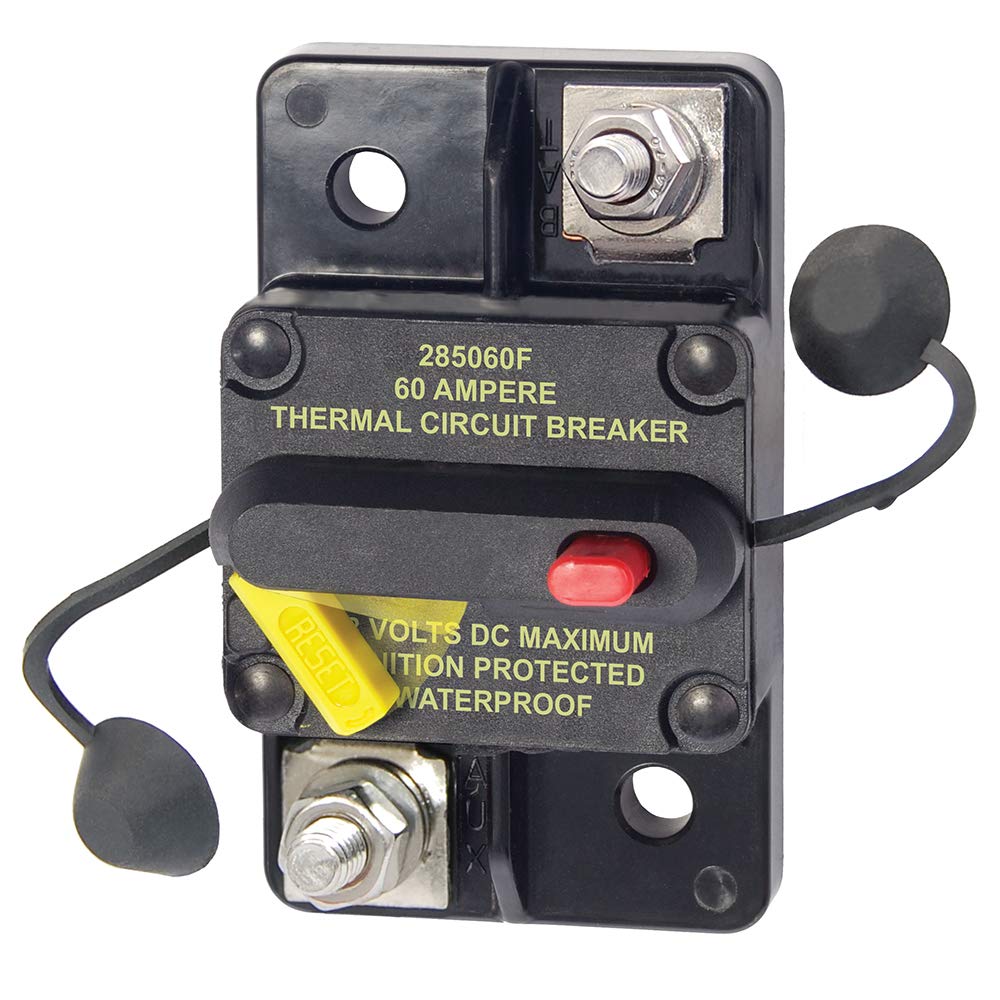

Blue Sea Systems 285-Series Surface-Mount Circuit Breaker, 60A

• Combine switching and circuit protection into single switch
• Drop in replacement for 185 series circuit breakers
• Trip-Free feature means switch cannot be held in ON position when a fault is detected
• Ignition protected; can be installed in engine rooms of gasoline powered boats

Circuit protection and switch combined in a single medium duty breaker. Ideal for windlass and electric winch applications, these surface mounted medium duty circuit breakers function as a switch, but also provide tailored circuit protection. A visible lever shows when the breaker has tripped and cannot be held in the ON position if a fault is detected. Ignition protected and water resistant, they can be installed almost anywhere; including the engine room of gasoline powered boats. Connected terminal caps protect terminals from accidental contact and help to prevent cross current shorts. Terminal studs are located on the face of the circuit breaker for easy installation.

Specifications

• Current Rating: 60 A
• Product Dimensions: 1.5"D x 1.75"W x 3.13"H
• Circuit Breaker Type: Type III - switchable/manual reset - trip free
• Mounting Type: Surface Mount
• Number of Items: 1
• Unit Count: 1 Count
• Global Trade Identification Number: 00632085071844
• Included Components: Circuit Breaker
• Item Weight: 1.6 ounces
• Item Type Name: 285-Series Circuit Breaker
• Number of Poles: 1
• Voltage: 48 volts
